VVW 3405

VVW 3405VVW 3405 is proved walk behind vibratory roller with top technical parameters. This machine is preemint in its field thanks to unique spring-mounted travel. Drive of travel and vibration is mechanical. The drums have smooth finished surface, they are provided with cleaning scrapers and both driven. HATZ engine. Vibration source is one-stage rectified vibration exciter, place on the machine frame.
STANDARD:
  • Riadiaci podvozok
  • Dva hladké poháňané behúne
  • Usmernená vibrácia
  • Spádové kropenie behúňa
  • Dva rýchlostné stupne vpred i vzad
  • PaintingSTA: yellow, grey
  • CAPACITY:
     Operating weight  (CECE)kg 1.060
     Maximal copmaction widthmm 750
    WEIGHTS:
     Operating weight maximukg 1.160
     Drum load (CECE)kg 535
     Axle load (CECE)kg 655
     Static linear drum loadkg/cm 7,13
     Static linear axle load kg/cm 4,73
    STEERING:
     Steering angle° 32
     Turninr radius - innermm 4.500
     Turning radius - outsidemm 5.410

    RIDING CHARACTERISTIC:

     No. of travel speeds
     Maximal speedkm/h 3,4
     Gradeability without vibration45
     Gradeability with vibration27

    BRAKES:

     Operationengine brake

    VIBRATION:

     Amplitudesmm 0,7
     FrequenciesHz 50
     Centrifugal forceskN 34

    SPARKLING:

     Type of sparklingspádové
    Water filtration stages

    TANKS:

    Fuellt 10
     Watering waterlt 56

    ENGINE:

     Make

    Hatz

     Type

    1D 60

     Rated power

    kW

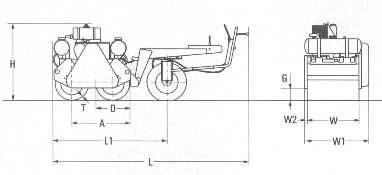

    PARAMETERS:
    size (mm)
    ADGHLL1TWW1W2
    6005001801.2102.6701.670875093027


    Technical modifications and data reserved. Machines may be shown with options.

    Maximal compacted lift thickness at optimal working conditions (m)
    RockfillSand / GravelMixed soilsClayAsphalt
    -0, 200, 15-0, 10
